Controls & hydraulics
- Simple, straightforward controls make training and operation easy
- Nationwide network of factory support options
- Optional hydraulic clutch pump on select models
Technical support
Model paths, controls & factory access
Use this page when you need configuration matrices and application answers—701 B vs. BSW vs. BTW, Radius deck rotation requirements, or Slide-In chassis recommendations.
Model matrix
701 configuration paths
Use this matrix when comparing winch and recovery boom packages on the 701 self-loader platform.
| Model | Wheel-lift | Underlift | Winch / boom |
|---|---|---|---|
| 701 B | 5,000 lb. | 75″ | Base self-loader |
| 701 BDW | 5,000 lb. | 75″ | 8,000 lb. planetary winch |
| 701 BSW | 5,000 lb. | 75″ | 8K winch + 10-ton recovery boom |
| 701 BTW | 5,000 lb. | 75″ | Dual 8K worm-gear winches + 10-ton boom |
Carrier, Python & Radius at a glance
| Line | Primary capability | Notable spec |
|---|---|---|
| Python | Self-loader + negative tilt | 86″ underlift, 25° negative & power tilt, ultraweight transfer boom |
| Carrier | Rollback transport | 12,000 lb., 20′/22′ decks, dual illuminated control stations |

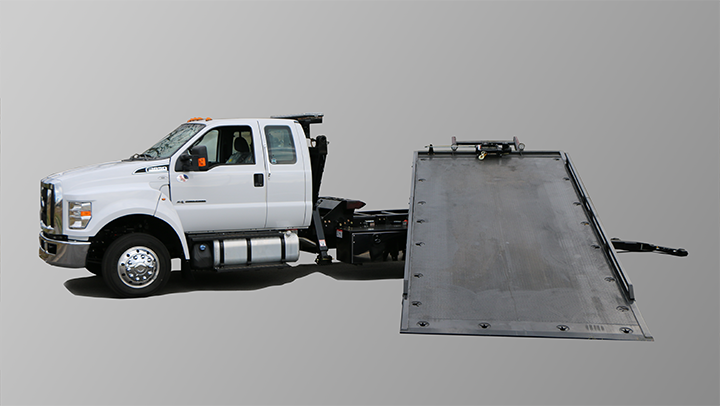

| Radius | Rotating flatbed recovery | 240° deck rotation, wireless proportional remote, hydraulic outriggers |
| Slide-In 601 | Compact upfit | 4,000 lb. wheel-lift, 72″ underlift, 7,500 lb. tow rating |
| Slide-In 701 | Compact upfit | 5,000 lb. wheel-lift, optional winch and recovery boom packages |
Highlights
Science of Simplicity™ reference
Quick technical reference for operators, shop foremen, and purchasing—use alongside the model matrices above when you spec or diagnose Dynamic equipment.
701 negative tilt
- 25° negative tilt reduces strain during load-on operations
- Power tilt on Python and select 701 builds
- Out-of-cab boom and winch control cord on BSW & BTW
Field diagnostics
- Minimal hydraulic and electric junctions for simpler troubleshooting
- Visible service points laid out for yard maintenance
- Factory support when a second opinion is needed
Technical contacts
- Dynamic HQ: 200 Ladish Rd, Cynthiana, KY 41031
- Parts fitment: 877-884-7662 or parts@ezcmx.com
- Warranty coordination: see Warranty page
